700C
浆果红

ALLITE®SuperMag™车架

支持加装水壶架和挡泥板的VAAST全碳前叉

Stans无内胎轮圈和Maxxis漫步者碎石路公路胎

VAASTAllroadPro把组和防水鞍座

A1产品介绍
A1配置
A1尺寸
HIGH PASSABILITY | ALMIGHTY | PRACTICAL
高通过性 | 全能 | 实用
VAASTA/1Allroad稀土镁自行车提供内走线和可更换的后桶轴螺纹配件,为满足更多场景的冒险预留了挡泥板和支架安装孔,同时我们预备了650B和700C两款车型。
VAASTA/1专为轻量化、持久耐用、降低维修可能而设计。螺纹五通碗组可消除中轴异响,因此我们采用了领先的EnduroT47中轴,这将带来超棒的负载能力。
实用性在设计时已经得到了充分考虑,例如在轮组上使用成熟的标准化替换件让您在全球任何一个地区都可以轻松驰骋向前。我们将Shimano、SRAM、Stans、WTB和Maxxis等众多业界最可靠的零部件品牌精心整合到了A/1上,同时获得了提升的性能和无与伦比的舒适骑行体验。
部件名称

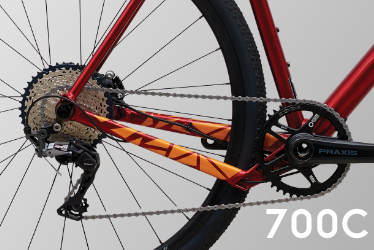

700C

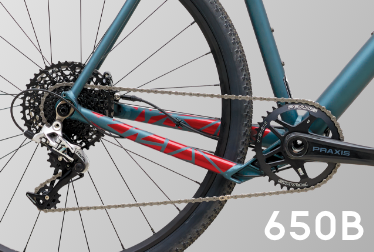

650B
车架
Frame
Allround-Allroad 700c/650b disc, AE81 ALLITE® Super Mag™, VAAST Allroad geometry, internal cable routing, dropper post ready. Rack and fender ready
Allround-Allroad 700c/650b disc, AE81 ALLITE® Super Mag™, VAAST Allroad geometry, internal cable routing, dropper post ready. Rack and fender ready
前叉
Fork
VAAST Allround-Allroad full-carbon disc, rack & fender ready
VAAST Allround-Allroad full-carbon disc, rack & fender ready
轮胎
Tires
Maxxis Rambler 700 x 38mm 120tpi, EXO/Tubeless Ready w/Lightweight tubes
Maxxis Rambler 650x47b 120tpi, EXO/Tubeless Ready
轮圈
Rims
Stan's Notubes Grail S1 w/Stan's tubeless rim tape
Maxxis Rambler 650x47b 120tpi, EXO/Tubeless Ready
刹车碟片
Rotors
Shimano Centerlock 160mm | SRAM Centerline 160mm
SRAM Centerline 160mm
牙盘
Crank
Praxis Zyante carbon 42T w/ M30 axle
Praxis Zyante carbon 42T w/ M30 axle
飞轮
Cassette
Shimano 11-42 11-speed | SRAM 11-42, 11-Speed
SRAM 11-42, 11-Speed
前拨
Shifters
Shimano GRX ST-RX600 |SRAM Rival1
SRAM Rival1
后拨
Chain
Shimano GRX, RD-RX812 | SRAM Rival1 11sp Long cage
SRAM Rival1 11sp Long cage
链条
RD
KMC X11 Anti Rust | SRAM 11sp
SRAM 11sp
刹车
Brakes
Shimano GRX RX600 Hydraulic | SRAM Rival1 Hydraulic
SRAM Rival1 Hydraulic
中轴
Bottom Bracket
Praxis T47 IB Enduro Bearings
Praxis T47 IB Enduro Bearings
前轮花鼓
Hub F
Sealed cartridge bearing, 12 x 100mm thru axle, Centerlock, 28H
Sealed cartridge bearing, 12 x 100mm thru axle, Centerlock, 28H
后轮花鼓
Hub R
Sealed cartridge bearing,11-speed, 12 x 142mm thru axle, Centerlock, 28H
Sealed cartridge bearing,11-speed, 12 x 142mm thru axle, Centerlock, 28H
辐条
Spokes
Double butted stainless
Double butted stainless
轮轴
Axles
VAAST M12
VAAST M12
车把
Handlebar
VAAST Allroad Pro,butted 6061 aluminum
VAAST Allroad Pro, butted 6061 aluminum
把立
Stem
VAAST Allroad Pro, 3D forged, 6 degree
VAAST Allroad Pro, 3D forged, 6 degree
把带
Grips / Tape
VAAST Anti Slip
VAAST Anti Slip
坐杆
Seat Post
VAAST Carbon fiber 27.2mm (300mm XS/S/M. 350mm L/XL)
VAAST Carbon fiber 27.2mm (300mm XS/S/M. 350mm L/XL)
坐垫
saddle
WTB Silverado 142 Comp
WTB Silverado 142 Comp
V - F I T
对应编号
参数名
XL
L
M
S
1
height 身高
>1.91
1.85~1.91m
1.76~1.84m
1.68~1.75m
R
reach 前伸量
410
395
380
365
S
stack 堆高
620
595
563
536
TR
true reach 真前伸量
486
471
455
439
TS
true stack 真堆高
672
647
615
588
2
top tube length,horizontal 上管长度,水平
605
583
557
534
3
wheelbase 轴距
1061
1038
1023
1008
4
chainstay length 后下叉长度
425
425
425
425
5
front center 前轴距
645
623
607
592
6
bb drop 中轴下沉
68
68
68
68
7
seat tube angle 立管角度
72.5
72.5
72.5
72.5
8
head tube angle 头角角度
72
72
71
70
9
seat tube length 立管长度
580
560
540
520
10
head tube length 头管长度
195
170
140
115
11
standover height 跨高
841
841
841
841
12
seat tube length inches 座管长度
23.2
22.4
21.6
20.8
13
crank length 立管长度
195
170
140
115
14
stem length 轮径
90
90
90
90
15
handlebar width 车把宽度
440
420
420
400
一辆自行车。所有道路。更多冒险。
